Wiring harness replacement stereo plugs for many 2006+ GM radios. LAN-29

ReplacementRadios, one of the largest factory audio/video websites, has branched out!! If you’ve been to our site, you know we have a HUGE selection of OEM radios and compatible accessories. Now we’re offering a few select products here too. Same great ReplacementRadios quality.....in a new location.

DETAILS

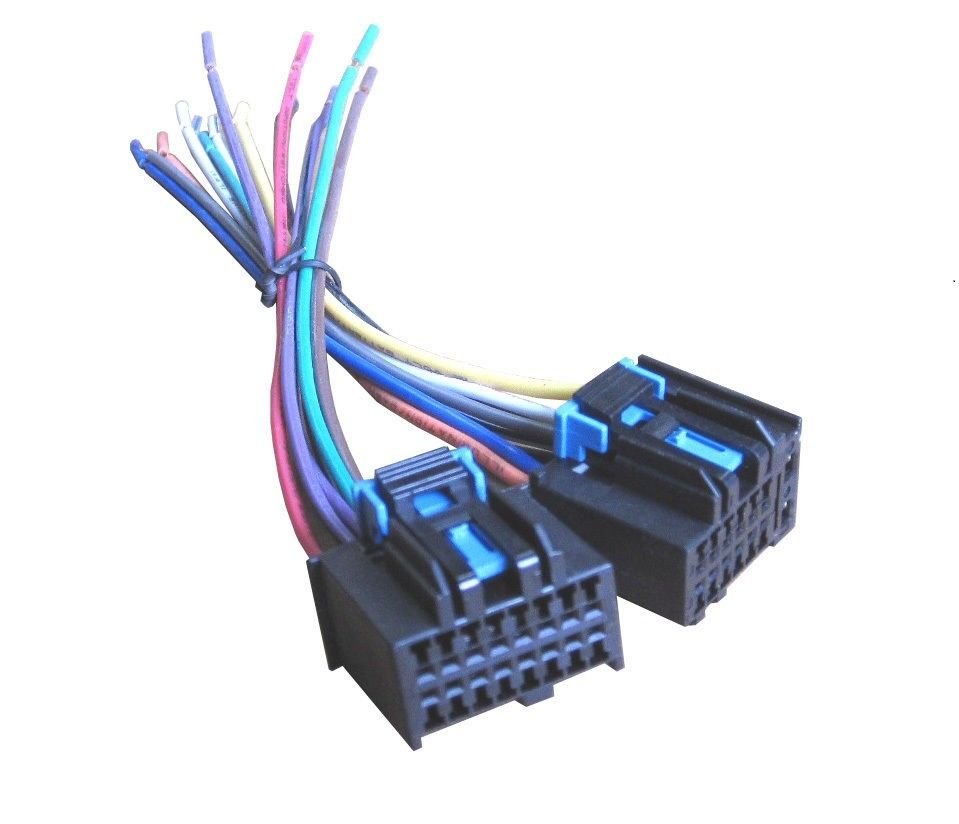

These are replacement plugs for original factory GM 14/16-pin radios. Wiring pigtails of approximately 6 inches are attached. These would be spliced into your existing harness if your factory plugs have been removed from the vehicle and you're trying to install a factory radio. There was another set of 14/16 plugs offered in GM vehicles, so make sure your radio part number and/or vehicle is listed in this ad.

This style of plug was used on many Buick, Chevy, GMC, Oldsmobile, Pontiac and Saturn radios that were approximately 4 3/8 inches tall, starting in 2006. Some vehicles used a different version, so make sure your radio part number and/or vehicle are listed in this ad. See APPLICATIONS below for examples of vehicles that used these plugs.

Here is a list of GM radio part numbers known to use these plugs:
15202716, 15223392, 15868809, 15871700, 15871701, 15887276, 15909951, 15923583, 15923593, 15942543, 15942546, 15942548, 15945859, 15945860, 15945861, 15951758, 20756285, 20785735, 20791972, 20792735, 20862568, 20887349, 20904501, 20918429, 20918430, 20934592, 20934593, 20935116, 20935119, 20935459, 20939999, 20952735, 20961130, 20968152, 20968153, 20971862, 20989684, 22736965, 22753251, 22753356, 22924535, 25776334, 25782841, 25782842, 25799568, 25801749, 25810756, 25812385, 25818944, 25823344, 25840249, 25849389, 25864959, 25864960, 25865029, 25887902, 25917936, 25925597, 25925598, 25926160, 25926161, 25941137, 25941139, 25941920, 25942014, 25942015, 25956998, 25966515, 25966516, 25974803, 25974804, 25980653, 25980720, 25992376, 25999287, 25999294, 28009324, 28078133, 28085179, 28088871, 28181378, 28181393, 28224655, 28237168, 28256327, 28278303. There are many others. However, please email before purchasing if your radio part number or vehicle is not listed.

Different wire colors were often used. Please be aware that you might have to track down the function of each wire on your harness and do research regarding pin assignment before wiring this plug up. These plugs will have the aftermarket standard wire colors, so wire assignment is easily identified on them. The car wiring side will be up to you.

One other note: Our supplier sometimes cast the plugs themselves in a different color plastic. Obviously that has no impact on their use. Some radios support a rear seat video system. Those use two additional plugs. They are not included in this listing.

APPLICATIONS
Many 2006 and newer GM vehicles, except 2012 and newer Silverado, Sierra, Suburban, Tahoe, Yukon and Avalanche with navigation radio.

Year(s) Make Model Trim Level Additional Info
—2008-2012 BUICK ENCLAVE ALL TRIM LEVELS
—2006-2011 BUICK LUCERNE ALL TRIM LEVELS
—2006-2011 CADILLAC DTS ALL TRIM LEVELS
—2007-2014 CADILLAC ESCALADE ALL TRIM LEVELS
—2007-2014 CADILLAC ESCALADE ESV ALL TRIM LEVELS
—2007-2014 CADILLAC ESCALADE EXT ALL TRIM LEVELS
—2007-2009 CADILLAC SRX ALL TRIM LEVELS
—2007-2013 CHEVROLET AVALANCHE w/o Nav for 2012+
—2007-2008 CHEVROLET EQUINOX ALL TRIM LEVELS
—2009-2018 CHEVROLET EXPRESS VAN ALL TRIM LEVELS
—2006-2013 CHEVROLET IMPALA ALL TRIM LEVELS
—2006-2007 CHEVROLET MONTE CARLO ALL TRIM LEVELS
—2007-2013 CHEVROLET SILVERADO w/o Nav for 2012+
—2007-2014 CHEVROLET SUBURBAN w/o Nav for 2012+
—2007-2014CHEVROLETTAHOEw/o Nav for 2012+
—2009-2012 CHEVROLET TRAVERSE ALL TRIM LEVELS
—2007-2013 GMC ACADIA ALL TRIM LEVELS
—2008-2018 GMC SAVANA ALL TRIM LEVELS
—2007-2013 GMC SIERRA w/o Nav for 2012+
—2007-2013 GMC SIERRA HD w/o Nav for 2012+
—2007-2014 GMC YUKON w/o Nav for 2012+
—2008-2009 HUMMER H2 ALL TRIM LEVELS
—2007-2009 PONTIAC TORRENT ALL TRIM LEVELS
—2007-2010 SATURN OUTLOOK ALL TRIM LEVELS
—2008-2010 SATURN VUE ALL TRIM LEVELS
