$20.77
Add to Cart
Navigation nav GPS install harness kit. Kenwood DNX car stereo radio in Lincoln
Please read the entire ad!! Returns are not accepted so you need to understand what you're purchasing here...
This is a brand new, factory boxed Kenwood navigation radio install kit. It appears to have been designed to allow installation of a Kenwood DNX radio (like the DNX7200, for instance) in some Lincoln vehicles. The kit is labeled for the 08 (Navigator, we think) but will probably work in other vehicles with the same style radio. (Research is up to you.)
It includes the following items. (A more detailed description of the items appears in the ADDITIONAL INFO section.)|
Bezel with Ford and Kenwood specific mounting points
Main power/ground/speaker harness.
Navigation system quick-start guide
We are not a Kenwood dealer (or a dealer for any aftermarket radios), so we know very little about these and, consequently, cannot answer questions or make any guarantees. We obtained them in a bulk purchase. We recommend you do research on the internet or contact Kenwood. This is the answer you will get to any and all inquiries you make to us about this product. What you see in the pictures is what you get. Some pictures show the items as they are packaged and others show them out of the packaging, so you can get a better view of them. The items are in a factory-original box. (The label from the box is pictured in one of the photos.) They have been stored in a warehouse, so the boxes are dirty but everything on the inside is pristine. We do not guarantee this to work for every application. Obviously this is a pretty elaborate set-up and there could be special considerations in some vehicles. The price is likely a fraction of what a kit like this would run from Kenwood, so you can afford to do a little experimentation.
ADDITIONAL INFO
Bezel: This is a bezel you would attach to a Kenwood DNX radio in order to adapt it to the Ford dash.

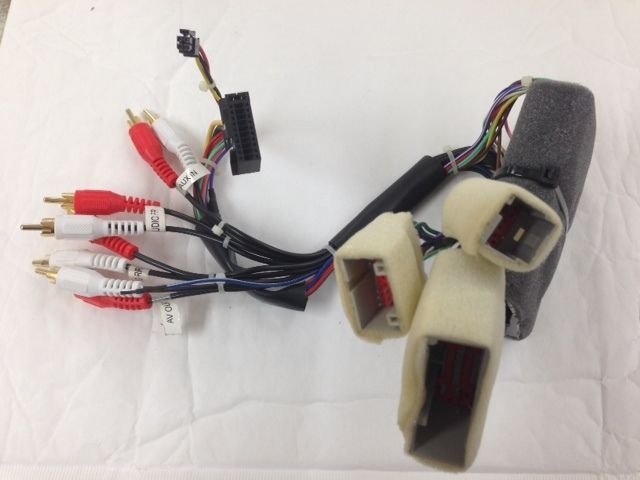

Main power/ground/speaker harness: This is quite the harness. It has thirteen different plugs on it and some sort of interface box! On one end, it has plugs for Lincoln radios like those found in the 2008 Navigator and, on the other it has Kenwood specific plugs. The first, larger Lincoln plug is for power, ground and speakers. There appear to be spots for 24 pins but not all are filled. The second, medium sized Lincoln plug has 16 pins. We assume this is for integrating audio from the rear video system (if so equipped) and, possibly, connecting the rear audio controller. The third, smaller Ford plug is for the THX subwoofer system, if your vehicle happens to be equipped with that. (It may not work with Audiophile systems that were optional in some Ford and Mercury vehicles because we have another version of this install kit that is labeled for AUDIOPHILE.) There appear to be spots for 8 pins but they are not all filled. The fourth plug is the main Kenwood DNX connector with power, ground, speakers, etc in it. There are spaces in the plug for 22 pins but a few are not filled. The fifth plug is what appears to be a secondary DNX power connector. It has 4 pins but only 3 are filled. The final eight plugs are four pairs of RCA connectors. One pair is labeled AUDIO RR, another is labeled AV OUT, another is labeled AUX IN and the last pair is labeled AUDIO FR. We are assuming these trace to the second and third plugs listed (the Lincoln plugs), for remote factory AV units and THX. There is also a large black interface box incorporated into the harness. We assume this handles CAN-BUS translation and, possibly, steering wheel control conversion, but we can't say for sure.
Navigation Quick Start Guide: Provides basic navigation operation instructions in both English and Arabic.
SHIPPING & RETURNS
Returns are not accepted for any reason. This is a clearance item. A tracking number will be input into the eCRATER system. They notify you if your preferences are set correctly. If not, please check your Purchase History on your eCRATER page.
