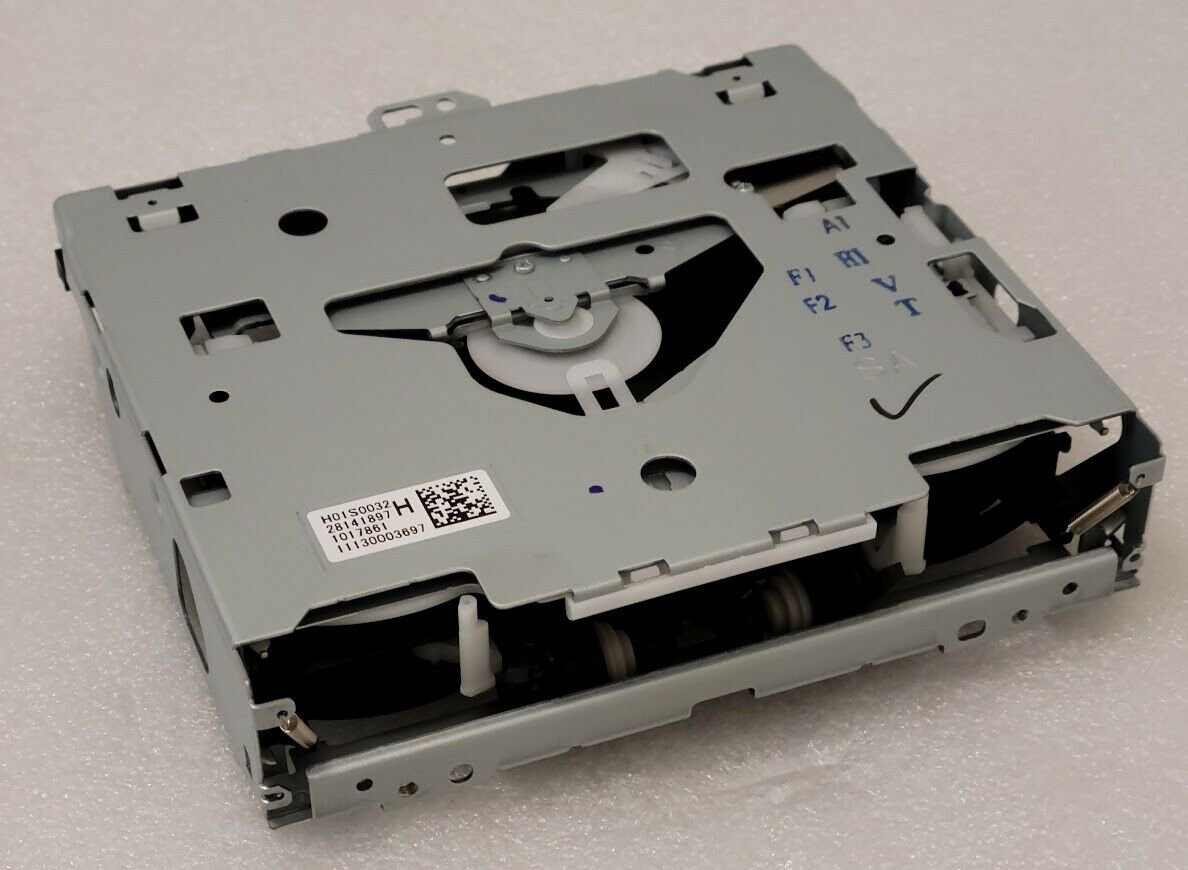

OEM Delco CD MP3 drive mechanism assembly for select 2010+ US8 or UUI car radio
ReplacementRadios, one of the largest factory audio/video websites, has branched out!! If you’ve been to our site, you know we have a HUGE selection of OEM radios and compatible accessories. Now we’re offering a few select products here too. Same great ReplacementRadios quality.....in a new location.
SUMMARY
New
-Has never been used in a vehicle
-Taken from an assembly line leftover radio
Factory (OEM) Delco Delphi drive
Single CD model
Works in many Delco manufactured radios
-From @ 2010-2012
Radio RPO codes are often US8 or UUI
-But be sure to match your drive
--GM had 3 radio manufacturers
---They all use different drives
Plays standard audio format CDs and CDRs
Play MP3 audio format CDs or CDRs
Looks like the one pictured above
-Although number on sticker may vary slightly
Make sure your radio is made by Delco
-Does not work in Panasonic or Fujitsu Ten radios
Make sure you match your drive to the pictures
Make sure yours has the same plug on the bottom
A GREAT way to replace a CD drive that is bad
NOT compatible with the CD6 radio
-am/fm radio with built-in 6 CD changer
Not compatible with navigation radios
Will NOT trigger the GM THEFTLOCK system
-Plug your radio back in and go
Requires removal of radio from the vehicle
-Do not attempt with radio connected
Typical Delco part number is 28141897
-If yours is different, email first
6 month warranty
APPLICATIONS
According to our info, this drive was offered in some 2010-2012 GM radios manufactured by Delco. However, in some models/years multiple radio manufacturers and drive types were used. We have provided pictures of this drive. It is up to you to confirm it is the same one you have in your radio. You can usually do this by popping the top cover off the radio so you can see the top of the drive. There should be a sticker with the part number located there, as seen in the picture.
We know it was used in radios with part number 20834563. We won't guarantee it for anything other than what we know it works in. Taking a chance on it is your prerogative but it does not make the item 'Not As Described' if it ends up being different from yours. You can check which version you need by removing your radio and removing the case. Please don't say we didn't tell you so...
ADDITIONAL INFO
Repairing a GM radio is generally a better idea than replacing it because your radio will not require programming when it is re-installed. It keeps your VIN in memory. If you replace the radio with a different one (even if it is the same part number) you will likely need programming at a GM dealership. So buying this CD drive for self-repair of your radio is both cheaper up front and in the long run. Installation is relatively easy. You should only need a flat screwdriver and a small nut-driver to remove the top plate. It is usually the same size screw holding the drive in place too. There will be a ribbon cable running from inside the radio to the board on the CD drive. It is usually a pressure connector with release levers on both sides. Do not attempt this repair with the radio still plugged in! Let it sit for a minimum of 30 minutes before attempting the repair. Make sure to confirm this is the drive you have BEFORE ordering. Compare your drive to the pictures and part numbers provided. A functional difference is not the same thing as a functional defect and usually only occurs when you don't match your drive and/or part number.
