Wiring harness replacement stereo plugs for some 1988+ GM factory original radio

ReplacementRadios, one of the largest factory audio/video websites, has branched out!! If you’ve been to our site, you know we have a HUGE selection of OEM radios and compatible accessories. Now we’re offering a few select products here too. Same great ReplacementRadios quality.....in a new location.

DETAILS

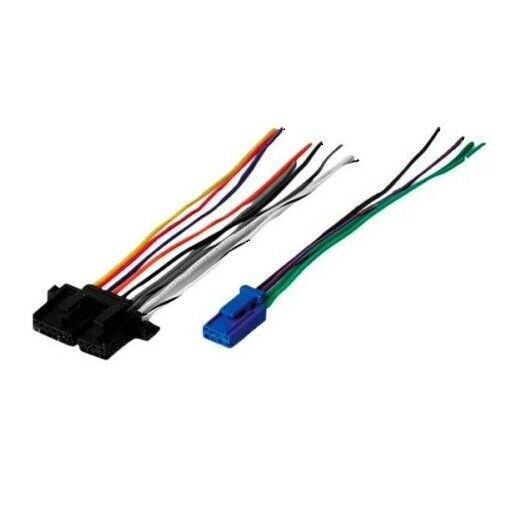

These are replacement plugs for the original factory GM 20 or 21 pin plugs found on the radio wiring harness of many 1988-2002 (and beyond, in some cases) vehicles. Wiring pigtails of approximately 6 inches are attached. These would be used if your original plugs were cut off and you are trying to install a factory radio in the vehicle. There was only one style of 20/21-pin plug offered by GM, so if you've counted 20 or 21 metal pins in your radio main connector, this is probably the harness kit you need. However, please note that one of the plugs is not included with this harness. It is the plug with the steering wheel control wire in it, which is rarely used. Your steering wheel controls, if present, will not work with this harness.

These plugs will have the aftermarket standard wire colors, so wire assignment is easily identified on them on the plug side. Identification of wires on the vehicle side will be up to you. One other note: Our supplier sometimes casts the plug itself in a different color plastic. Obviously that has no impact on use. This style of plug was used on most Cadillac, Buick, Chevy, GMC, Oldsmobile and Pontiac radios, starting in 1988. However, other plugs were offered in vehicles with special sound systems so make sure to check your plugs if your system is labeled as anything special. (Bose, Symphony, etc.) See APPLICATIONS below for examples of vehicles that used the 20 or 21 pin plugs, in some cases.

Radios with the following part numbers can use this plug: 09350812, 09353762, 09354155, 09354175, 09354185, 09356055, 09356085, 09367615, 09368025, 09370202, 09370222, 09375262, 09375895, 09375925, 09376112, 09380122, 09380141, 09380151, 09380152, 09383045, 09383075, 09383821, 09385502, 09390762, 09390772, 09393782, 10306067, 15071662, 15757508, 15764357, 15764358, 15766822, 16163131, 16201164, 16213363, 16213825, 16232131, 16232141, 16251472, 16255321, 16255495, 16257152, 16259801, 16259811, 16265855. And many others. Email with your part number if you want us to check.

APPLICATIONS
If your vehicle is on this list, you can use this plug set, provided your vehicle wasn't equipped with a special sound system (like Bose). If you're unsure, check your radio to make sure it will accept these. As noted above, this plug set does not support steering wheel controls. The radio will still function. You just won't be able to control it from your steering wheel.

Please note it was not uncommon for GM to switch plug styles in the middle of a model year. So, in some cases, not all cars on this list will have the 12-prong plug in the last year listed. (If you have a 1990 Camaro, for example, you will want to make sure your car does not have the older 12-prong plug before purchasing this plug set.)
--Buick Century 1988-1996
--Buick LeSabre 1988-1994
--Buick Park Avenue 1991-1994
--Buick Reatta 1990-1991
--Buick Regal 1988-1994
--Buick Roadmaster 1991-1994
--Buick Skylark 1989-1994
--Cadillac Brougham 1990-1992
--Cadillac Deville 1988-1993
--Cadillac Eldorado 1992-1995
--Cadillac Fleetwood 1990-1996
--Chevrolet Astro 1988-2005
--Chevrolet Avalanche 2002
--Chevrolet Beretta 1988-1996
--Chevrolet Blazer Fullsize 1992-2002
--Chevrolet Blazer S10 1982-1991
--Chevrolet CK Truck 1988-1994
--Chevrolet Camaro 1990-2002
--Chevrolet Caprice 1991-1996
--Chevrolet Cavalier 1988-1999
--Chevrolet Corsica 1988-1996
--Chevrolet Corvette 1990-2004
--Chevrolet Express Van 1996-2000
--Chevrolet G-series Van 1988-1995
--Chevrolet Impala 1994-1996
--Chevrolet Lumina 1990-2001
--Chevrolet Malibu 1997-2000
--Chevrolet Monte Carlo 1995-1999
--Chevrolet S10 Blazer 1992-1994
--Chevrolet S10 truck 1990-2002
--Chevrolet Silverado truck 1995-2002
--Chevrolet Suburban 1989-2002
--Chevrolet Tahoe 1995-2002
--Chevrolet Venture 1997-1999
--GMC Jimmy Full Size 1988-1991
--GMC Jimmy S15 1992-2002
--GMC Pickup Full Size 1988-1994
--GMC Pickup Sonoma 1991-2002
--GMC Safari 1988-2005
--GMC Savana 1996-2000
--GMC Suburban 1988-1999
--GMC Van 1988-1995
--GMC Yukon 1992-2002
--Oldsmobile Cutlass Ciera 1982-1987
--Oldsmobile 88 1989-1993
--Oldsmobile 98 1989-1993
--Oldsmobile Achieva 1992-1995
--Oldsmobile Bravada 1991-1997
--Oldsmobile Calais 1988-1991
--Oldsmobile Ciera 1988-1996
--Oldsmobile Cutlass Supreme 1989-1994
--Oldsmobile Silhouette 1990-1999
--Oldsmobile Toronado 1990-1992
--Pontiac Bonneville 1992-1999
--Pontiac Firebird 1990-2002
--Pontiac Grand Am 1990-2000
--Pontiac Grand Prix 1988-2003
--Pontiac Montana 1999
--Pontiac Sunbird 1989-1994
--Pontiac Sunfire 1995-1999
--Pontiac TranSport 1990-1999
--Saturn S Series 1991-1999
