$17.66
Add to Cart

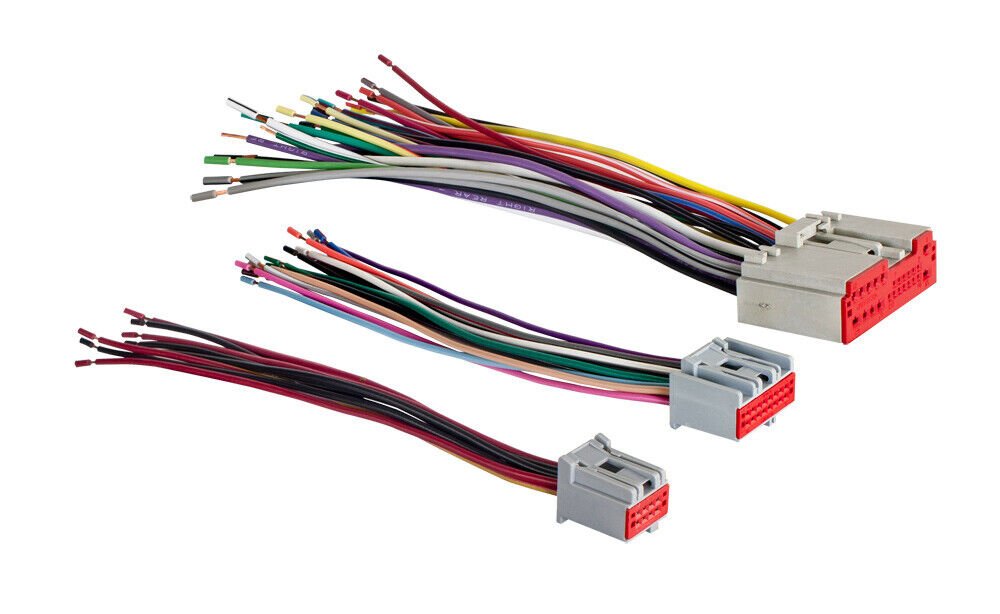

Wiring harness replacement stereo plugs. Most 2003+ Ford original factory radios
ReplacementRadios, one of the largest factory audio/video websites, has branched out!! If you’ve been to our site, you know we have a HUGE selection of OEM radios and compatible accessories. Now we’re offering a few select products here too. Same great ReplacementRadios quality.....in a new location.
DETAILS
These are replacements for the main (24-pin), auxiliary (16-pin), and subwoofer (8-pin) plugs found in many Ford, Lincoln and Mercury vehicles. (If you need the opposite version check our store for the FDW-AP24.) Wiring pigtails of approximately 6 inches are attached.
This would be used if your original plugs were cut off and you are trying to install a factory radio in the vehicle. This was the only 24-pin plug offered by Ford in the vehicles listed, so if you've counted 24 pins on your main connector, this is the one you need. If you do not need the auxiliary and subwoofer plugs, check our store for the FDW-RP24 plug to save a little money.
This style of plug was used on most Ford, Lincoln and Mercury radios from 2003 and newer, in some vehicles. See APPLICATIONS below for examples of vehicles that used this plug, as well as a list of Ford radio engineering (part) numbers.
The main plug will have the aftermarket standard wire colors, so wire assignment is relatively easy to identify on the plug side. (See the standard color chart in the pictures attached to this listing, as the plug packaging will not necessarily include a color chart.) Identification of Ford specific wires, as well as wires on the vehicle side will be up to you. The wiring colors in your vehicle WILL differ from these, so professional installation may be required. See more details on wiring colors in the ADDITIONAL INFO section.
APPLICATIONS
Some radio engineering (part) numbers known to use this plug are listed here. Other numbers are possible. If you think yours applies but you do not see it listed, please email us before purchasing.
6L2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 06 Explorer
6L2T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 06 Explorer
6L2T-18C868-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Explorer
6L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Explorer
6E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Fusion
6E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 06 Fusion
6E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Fusion
6E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 06 Fusion
7A2T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Sport Trac
7E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Fusion
7E5T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 07 Fusion
7E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 07 Fusion
7E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Fusion
7E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 07 Fusion
7L1T-18C815-R (RA, RB, RC, RD, RE, RF, RG, RH, etc) -- 07 Expedition
7L1T-18C869-E (EA, EB, EC, ED, EE, EF, EG, EH, etc) -- 07 Expedition
7L2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 07 Explorer
7L2T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 07 Explorer
7L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Explorer
7L3T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, BI, BJ, BK) -- 07 F150
7R3T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Mustang
7R3T-18C869-M (MA, MB, MC, MD, ME, MF, MG, MH, etc) -- 07 Mustang
7T4T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, BI, BJ, BK) -- 07 Edge
8E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 08 Fusion
8E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 08 Fusion
8E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 08 Fusion
8L2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 08/09 Explorer
8L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 08/09 Explorer
8L2T-18C869-H (HA, HB, HC, HD, HE, HF, HG, HH, etc) -- 08/09 Explorer
8L3T-18C815-K (KA, KB, KC, KD, KE, KF, KG, KH, etc) -- 08 F150
8L3T-18C869-F (FA, FB, FC, FD, FE, FF, FG, FH, etc) -- 08 F150
8L3T-18C869-M (MA, MB, MC, MD, ME, MF, MG, MH, etc) -- 08 F150
8E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 08 Fusion
9E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
9E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 09 Fusion
9E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
9E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 09 Fusion
9E51-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
9E51-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 09 Fusion
9E51-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
9E51-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 09 Fusion
9L1T-18C869-J (JA, JB, JC, JD, JE, JF, JG, JH, etc) -- 09 Expedition
9L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Explorer
AC3T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 2010+ F250-F450
AL2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 2010 Explorer
AL2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 2010 Explorer
BC2T-18C869-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 2011+ E Van
BC3T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 2011+ F250/F350
BC3T-18C869-E (EA, EB, EC, ED, EE, EF, EG, EH, etc) -- 2011+ F250/F350
BC3T-19C157-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 2011+ F250/F350
BC3T-19C157-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 2011+ F250/F350 Other applications are possible. Email us.
ADDITIONAL INFO
The color codes used on this harness comply with the E.I.A (Electronics Industry Association) standard. The colors found on this harness WILL differ from the wiring colors found in your vehicle, so we recommend professional installation. Always refer to a wiring diagram for your exact vehicle for specific wiring details before making any connections.
SHIPPING and HANDLING
-Shipping cost is based on weight and zip code. This site does the figuring, not us. If you feel their calculation is high, you might be underestimating the package weight, size, and/or current shipping costs from our zip code (62401) to yours. Please don't ding us for shipping in the ratings, as we have no control over ever-increasing carrier rates.
-We will enter a tracking number into your order details here on the site. They will email it to you if your notification preferences are set correctly.
-A signature is not typically required. If you are not home to receive the package, it will most likely be left at your door. Please monitor it's progress and arrange to collect it when it arrives.
-This site provides a section/tab in each ad for Shipping information. We encourage you to check that section for prices, methods, time-frames, etc.
